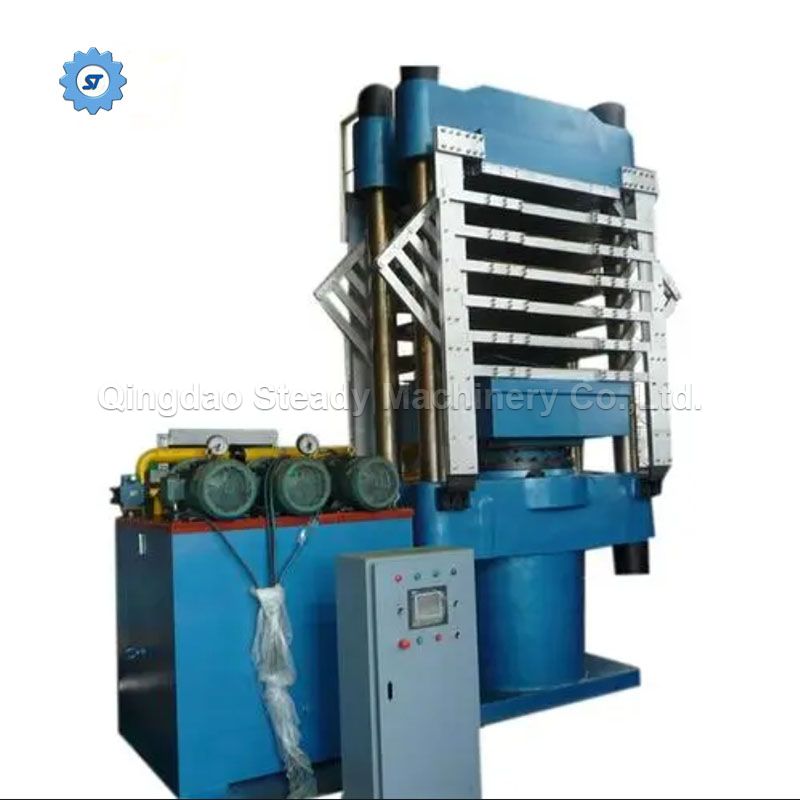

Home > Products > Rubber Press > Frame Type Rubber Vulcanizing Press > Hydraulic Spray EVA Sheet Polyutherane Foam Forming Machine
Hydraulic Spray EVA Sheet Shoe Sole Polyutherane Foam Forming Machine is an important equipment widely used in modern industrial production. It is not only widely used in automobile manufacturing, electronics industry, construction industry, and medical industry, but also plays an important role in other fields. With the continuous development and progress of technology, the performance and efficiency of vulcanization machines are also constantly improving, and they will play a more important role in future industrial production.
The vulcanizing machine is one of the key equipment in rubber production, and its control system directly affects the vulcanization efficiency and quality of rubber products The application of PLC in the vulcanization machine control system has significantly improved the automation level of the vulcanization machine. Its operation is relatively stable and its functions are more reliable. At the same time, it can further improve the vulcanization process, greatly improving the vulcanization production efficiency and quality of rubber.
Customers can choose machines type according to their work needs and budeget.
There are manual operation, electric realy control operation and PLC operation for choice.
The installation of PLC can achieve vulcanizing press automatic mold closing, automatic exhaust, automatic mold opening, automatic pushing and pulling, automatic lifting of the upper mold, and other actions.
Hydraulic Spray EVA Sheet Polyutherane Foam Forming Machine is an important equipment used in the production of EVA sheet and also can be used to make other rubber sheet products. Its main function is to heat uncured rubber products, allowing them to react with vulcanizing agents at high temperatures, thereby forming finished products with elasticity and wear resistance. Vulcanizing machines are widely used in fields such as automobiles, electronics, construction, and healthcare, and are one of the indispensable key equipment in modern industrial production.
1、 Automobile manufacturing
The vulcanization machine plays an important role in the automotive manufacturing process. For example, in the tire manufacturing process, the tire needs to be heated by a vulcanization machine to have good elasticity and wear resistance. In addition, in the production process of automotive components, such as rubber seals, pipelines, etc., they also need to be processed through vulcanization machines.
2、 Electronic industry
In the electronics industry, vulcanization machines are mainly used to produce products such as wires and cables. These products require heating treatment to achieve the required physical and chemical properties. Due to its high efficiency and stability, vulcanization machines have been widely used in the electronic industry.
3、 Construction industry
In the construction industry, vulcanization machines are mainly used to produce various sealing materials, waterproof materials, etc. These materials need to have good durability and wear resistance, and vulcanization machines can make them meet these requirements. In addition, in the construction industry, vulcanization machines can also be used to produce products such as rubber floor mats and rubber tiles.
4、 Medical industry
In the medical industry, vulcanization machines are mainly used to produce medical rubber products, such as gloves, infusion tubes, etc. These products need to have good elasticity and corrosion resistance, and vulcanization machines can meet these requirements.
5、 Other fields
In addition to the above-mentioned fields, vulcanization machines can also be applied in other fields. For example, in the textile industry, vulcanization machines can be used to produce elastic fibers; In the process of toy manufacturing, vulcanization machines can be used to produce rubber toys, etc.
Below are some often use models for Frame type rubber vulcanizing press machine.
Model | 800x800 | 1000x1000 | 1200x1200 | 1300x1300 | 1500x1500 | 1000x2000 | 1400x2700 |
Nominal Mold Clamping Force(ton) | 250 | 300 | 400 | 450 | 600 | 1000 | 2000 |
Heating Platen Size(mm) | 800x800 | 1000x1000 | 1200x1200 | 1300x1300 | 1500x1500 | 1000x2000 | 1400x2700 |
Working Layer | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Piston Diameter(mm) | ø400 | ø450 | ø500 | ø550 | ø300x4 | ø500x3 | ø500x6 |
Piston Stroke(mm) | 300 | 300 | 300 | 300 | 400 | 400 | 500 |
Daylight/ Platen Spacing(mm) | 300 | 300 | 300 | 300 | 400 | 400 | 500 |
Unit Area Pressure(Mpa) | 3.9 | 3 | 2.78 | 2.67 | 2.67 | 5 | 5.3 |
Main Motor Power(KW) | 5 | 6 | 8 | 10 | 15 | 15.0 | 30+10 |
Mold Closing Speed(mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
Mold Opening Speed(mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
We can tailor make machine according to customers' technical requirements or special work needs.
Just feel free to contact us. We'll make a best proposal with most reasonable price.

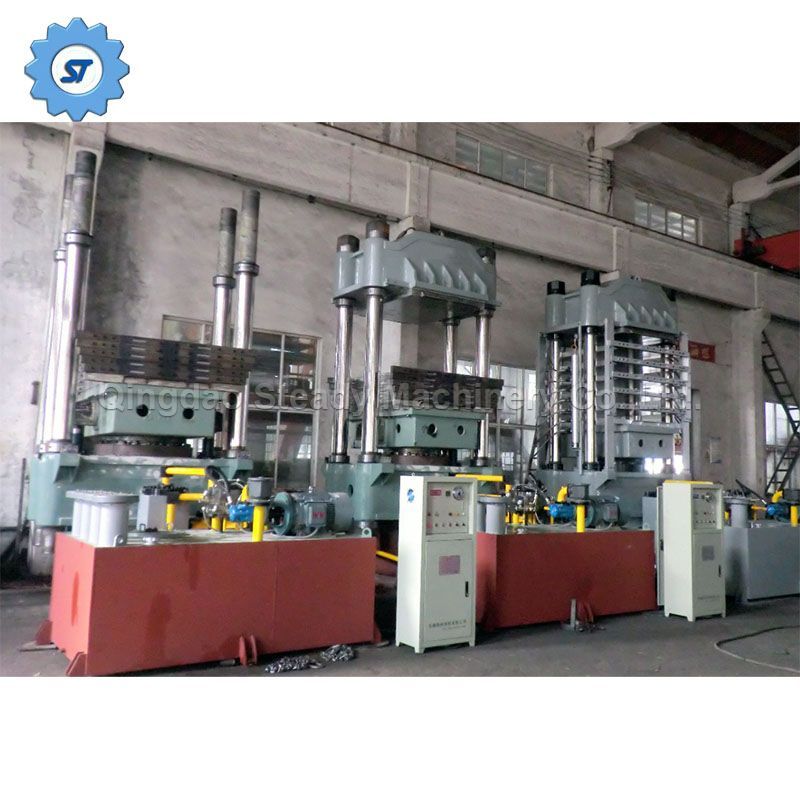

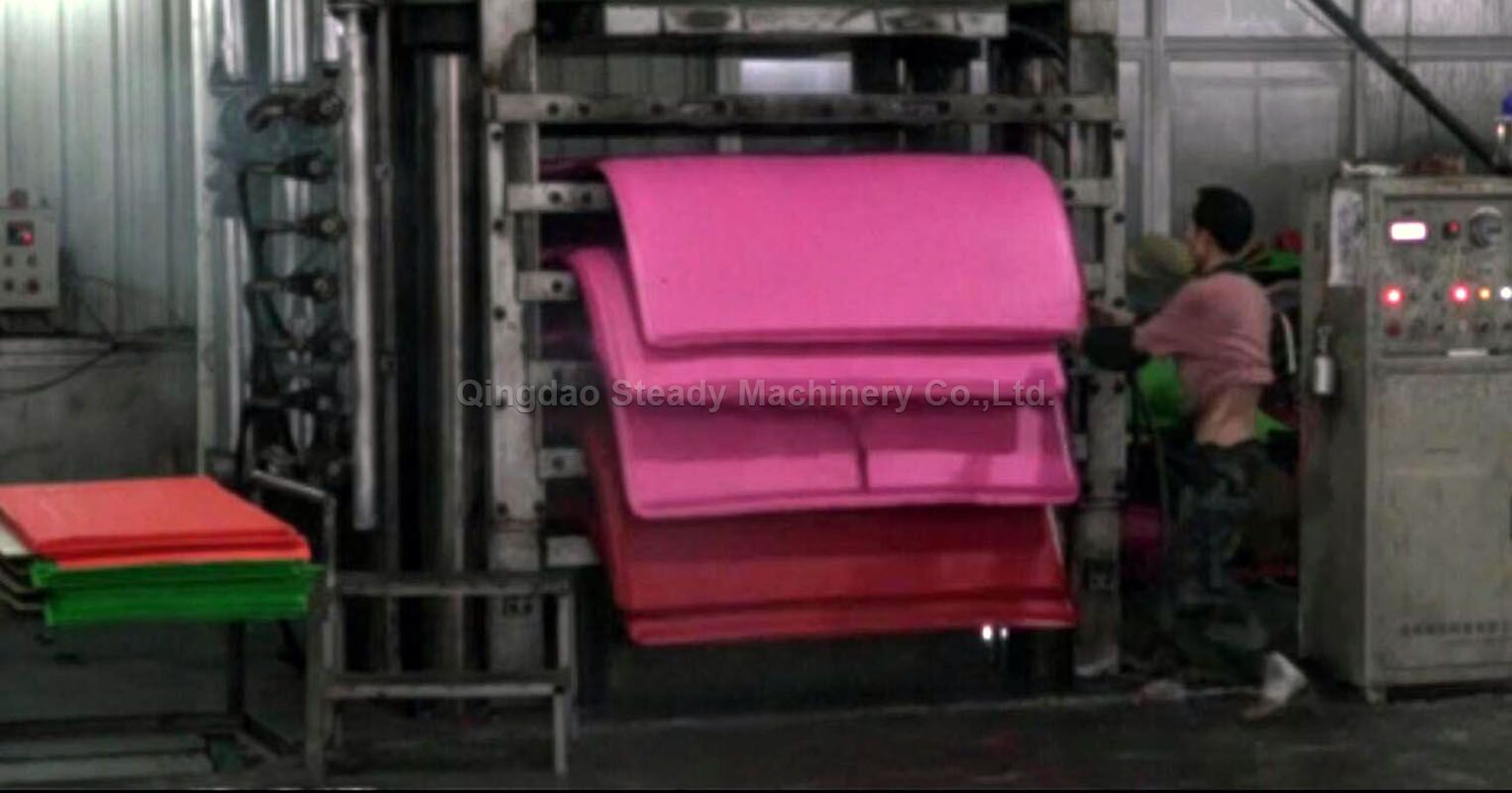

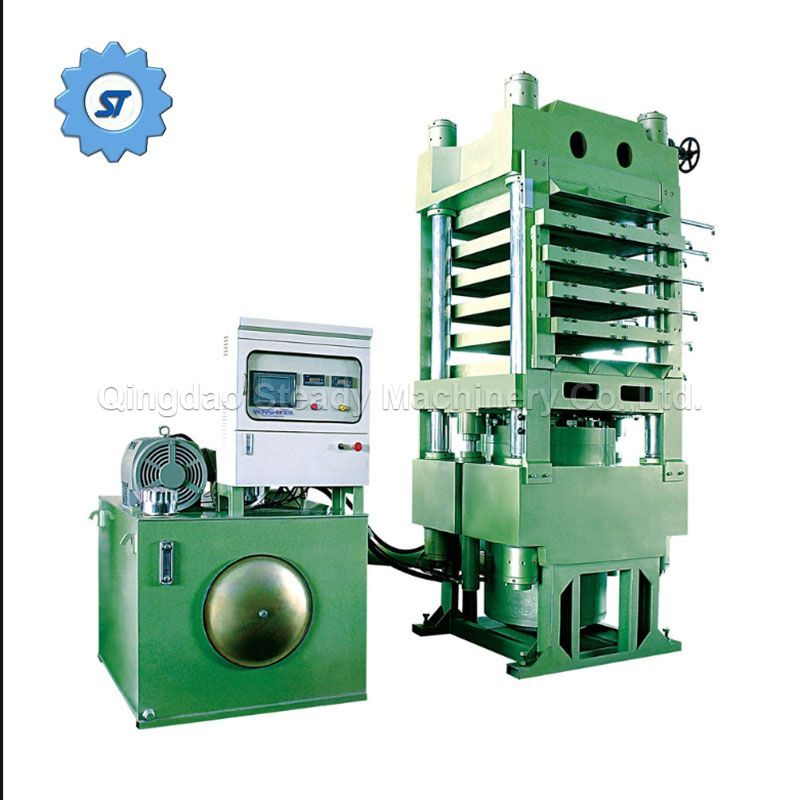

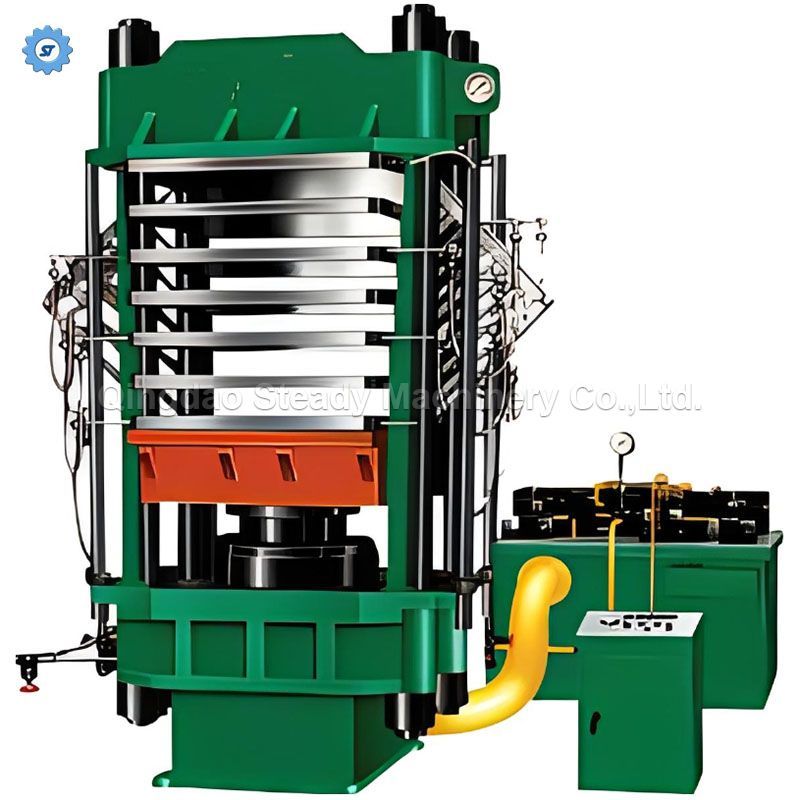

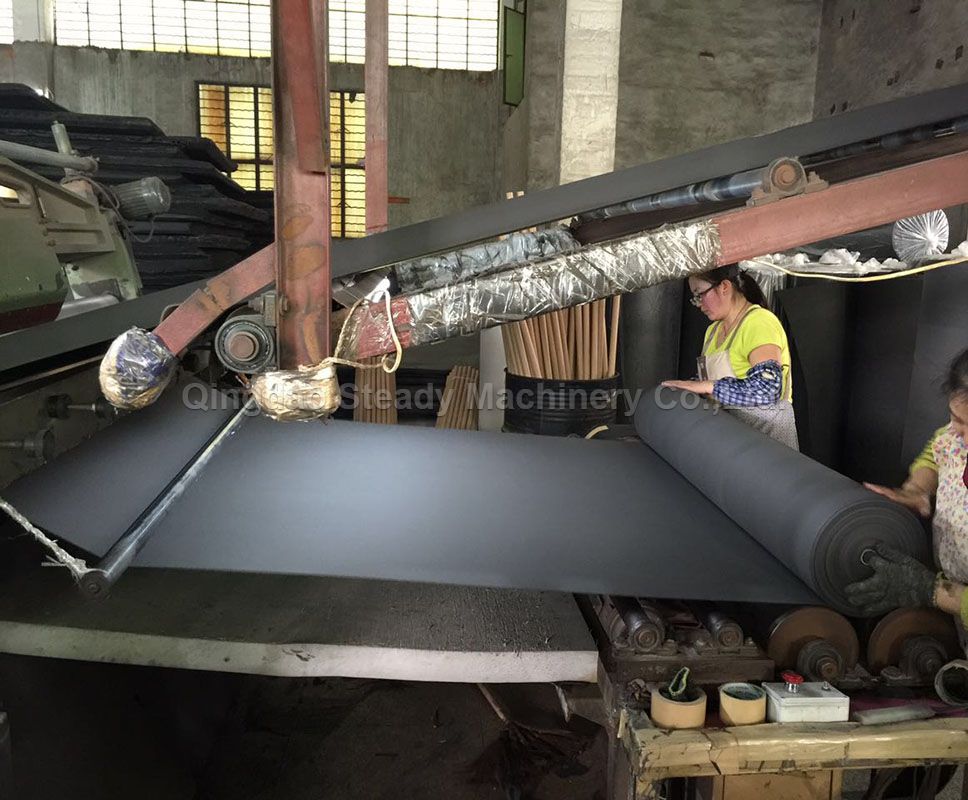

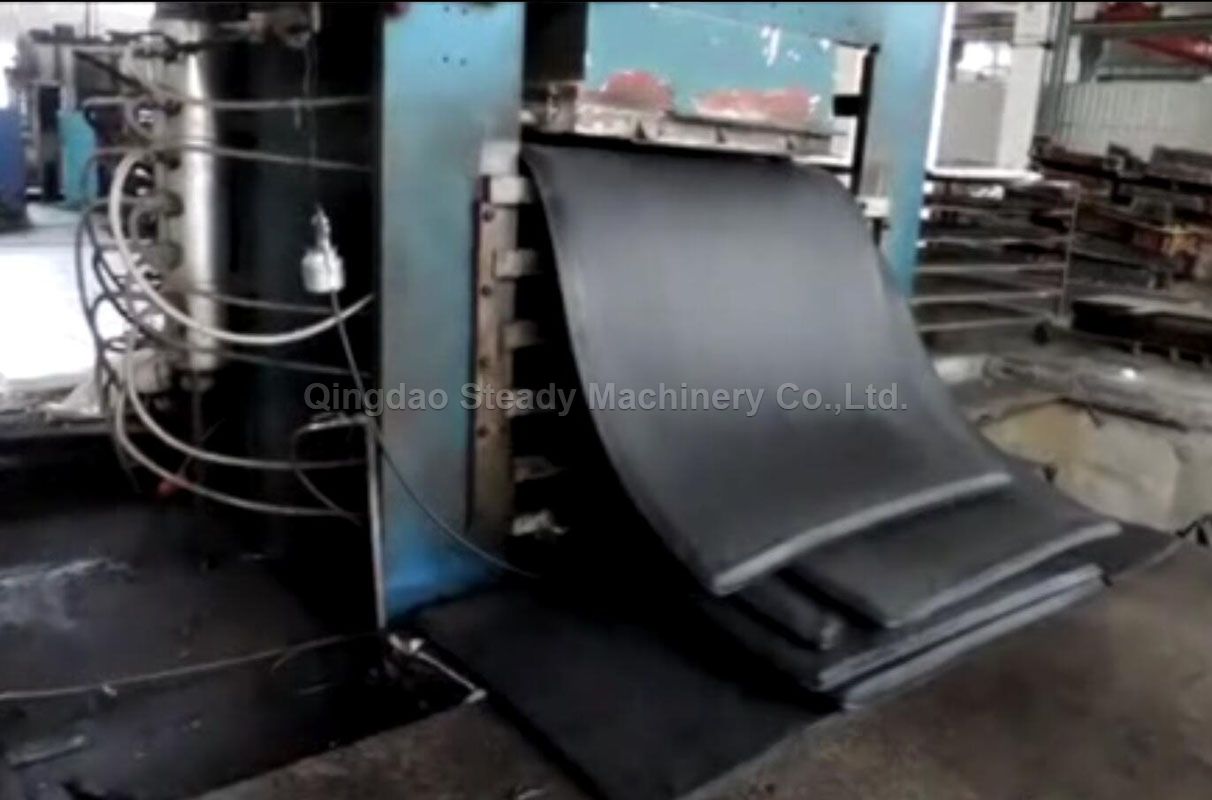

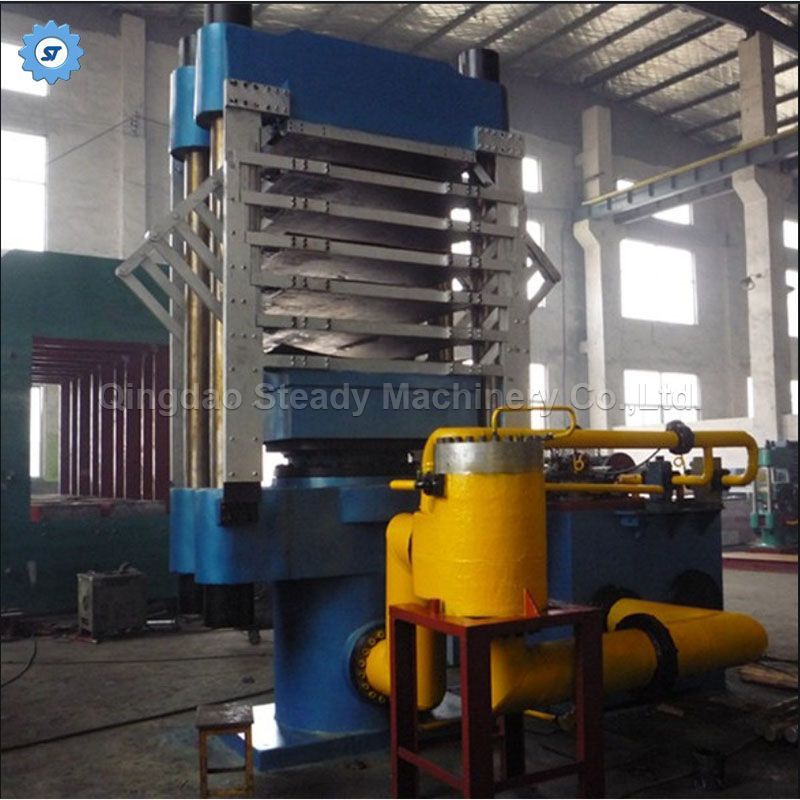

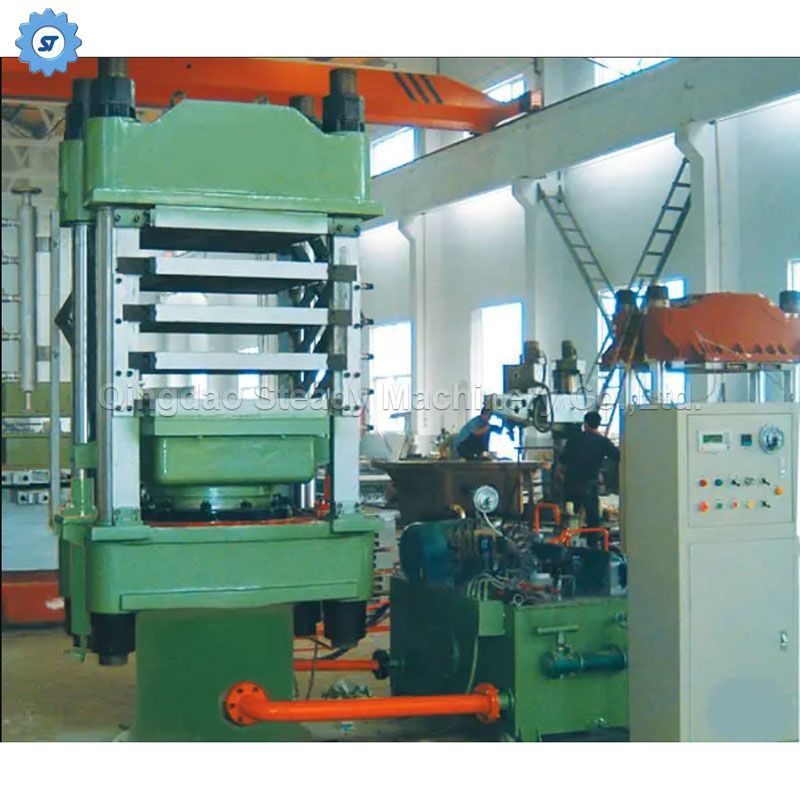

Some pictures for reference:
Reference video on Youtube:
Control Box
Adopts China demestic famous brand CHNT or DELIXI brand, works accutate and stable.
And international brand like Siemens etc. can also be an option.
Valves
high quality International famous brand valve, works excellet low noise stable and long service life.
Oil Cylinder and Piston
Oil cylinder adopts QT500-7 ductile iron, called FCD50 in Japan; piston adopts chilled hard alloy cast iron; seal adopt imported international quality sealing ring and dust proof ring, to ensure long working life.
Heating Platen
Double sizing rolling #Q235B(SS41) steel plate, normalizing treatment.
Column/Pillar/Frame
Use #45(S45C) round steel, ball blast rust cleaning, jolting to remove internal stress, and then move to machining workshop to processing, polishing.
And we have huge size rubber vulcanizing press machine making ability, which can be used to make big size rubber products.
Heating Bar
Our rubber vulcanizer adopts stainless steel heating bar as heating element.
It's high heating performance and long service life.
Ø1. Will your machine meet our voltage, can we use your machine in our country?
Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,
Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization level, PLC or not, etc,
Ø 2. Guarantee?
For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.
Ø 3. Will the machine be kept well while on the sea journey?
Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.
For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.
Ø 4. Whats’ the payment method?
There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.
Ø5. What’s the shipping method?
Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.
When it come to small pare parts, it’s by international courier by air.
