Home > Products > Rubber Extruder > Cold Feed Rubber Extruder > Rubber Plastic Pipe Hose Tube Strip Winding Machine
Automatic pipe winding machines are widely used in fields such as construction, manufacturing, aviation, and shipbuilding. Here are some common application scenarios:
1. Construction field: In construction, automatic pipe winding machines are used to roll various types of pipes, such as drainage pipes, electrical pipes, ventilation pipes, etc.
2. Manufacturing field: During the manufacturing process, automatic pipe winding machines are used to roll the manufactured pipes into rolls for easy storage and transportation.
3. Aviation industry: In the aviation industry, automatic pipe winding machines are used to roll various types of pipes, such as oil pipes, gas pipes, cooling pipes, etc.
4. Ship field: In the shipbuilding process, automatic pipe winding machines are used to wind various types of pipes, such as drainage pipes, ventilation pipes, oil pipes, etc.
5. Other fields: Automatic pipe winding machines can also be applied in underground engineering, petrochemical, power engineering and other fields to meet the winding needs of various pipes.
Automatic pipe winding machine is an important automation equipment widely used. When selecting an automatic pipe winding machine, it is necessary to choose based on specific pipe parameters and application requirements to ensure stable improvement of winding quality and production efficiency.
The characteristics of automatic pipe winding machine
1. High degree of automation: The automatic pipe winding machine can achieve fully automated operation without manual intervention.
2. High winding efficiency: The automatic pipe winding machine can quickly complete the winding process and improve production efficiency.
3. High winding accuracy: The automatic hose winding machine can accurately control the tension and speed of the winding, ensuring the quality of the winding.
4. Easy operation: The operation of the automatic tube winding machine is very simple, just press the button to start and stop.
5. High safety: The automatic strip winding machine adopts multiple safety protection measures to ensure the safety of operators.

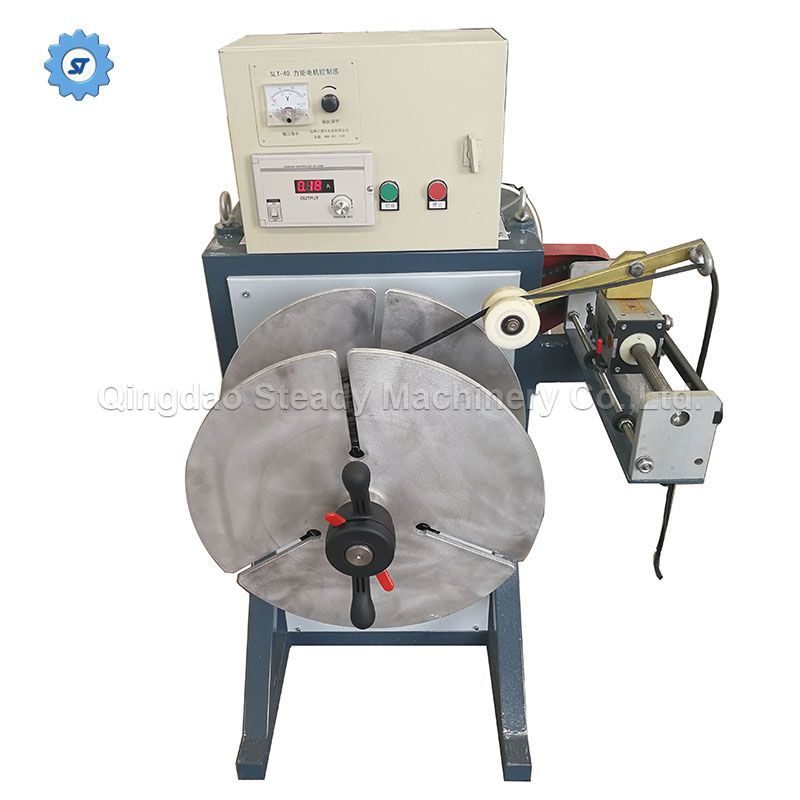

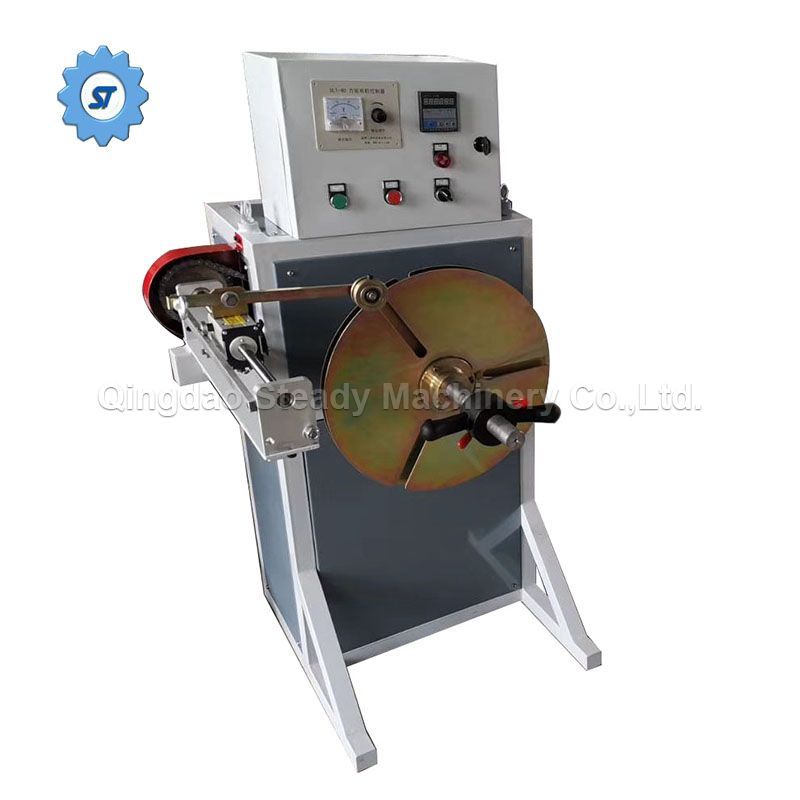

Single Disc/station Winding machine
| Product Name | Tube Winding Machine | |
| 1 | Model | SW-40 |
| 2 | Tube Diameter | Φ10-40mm |
| 3 | Direction | Right to left |
| 4 | Max. Linear Speed | 20m/min |
| 5 | Coil Inner Diameter | Φ100mm TO Φ250mm |
| 7 | Coil Width | 200mm |
| 8 | Coil Outer Diameter | Φ400mm |
| 9 | Traverse | Polish rod |
| 10 | Coil Side Type | Wheel disk |
| 11 | Motor Power | 750W |
| 12 | Inverter Power | 1.5KW |
| 13 | Electronics | CHNT |
| 14 | Unload Type | Fast screw nut |
| 15 | Color | As require |
| 16 | More function | Meter auto counter, Tension control |

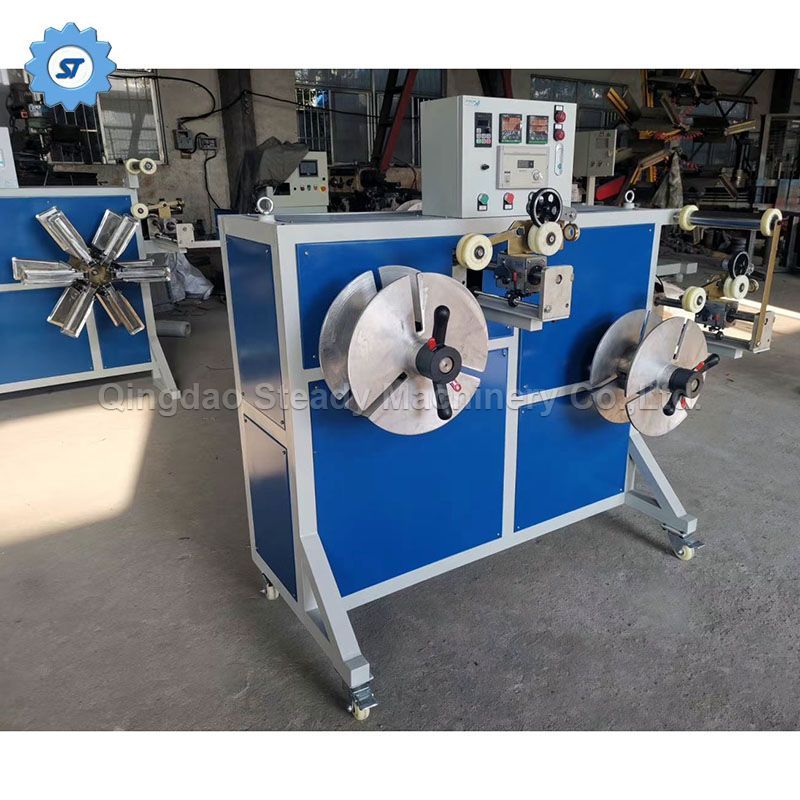

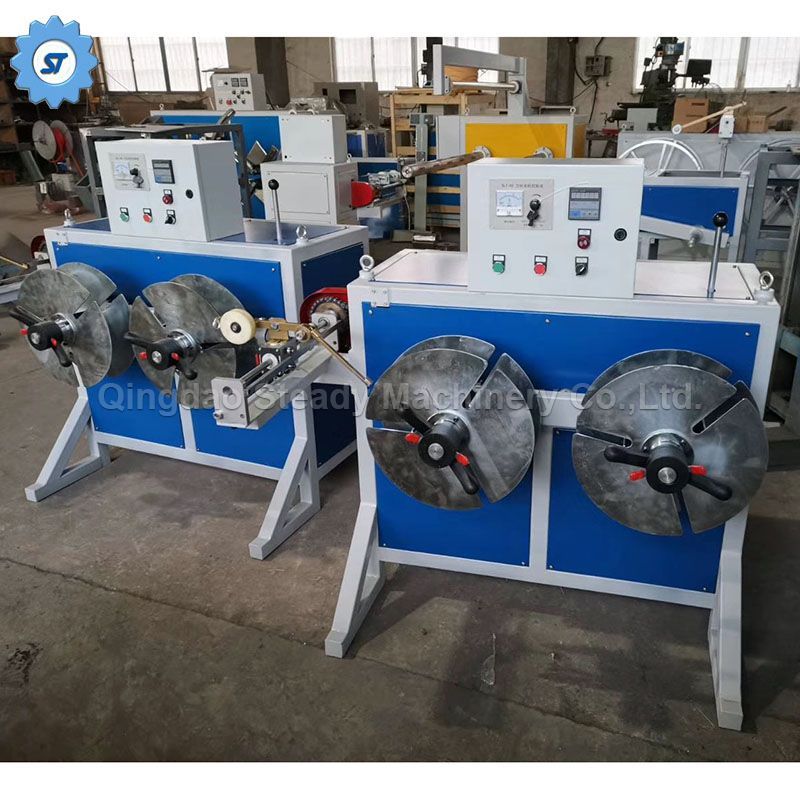

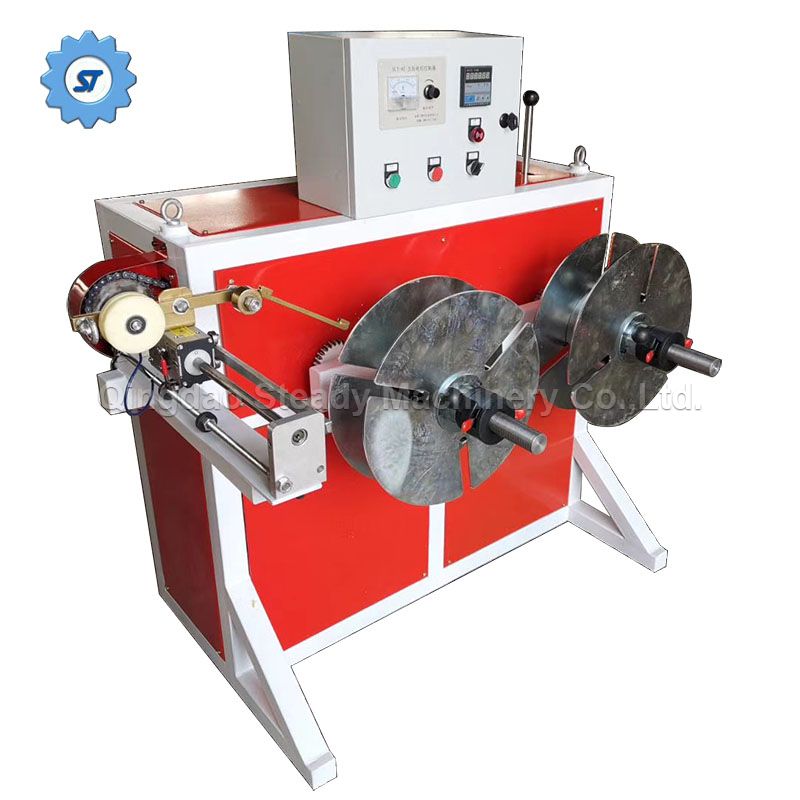

Double Disc/Position Winding Machine
| Product Name | HDPE Tube Winding Machine | |
| 1 | Model | DW-560 |
| 2 | Tube Diameter | Φ14-18mm |
| 3 | Direction | Right to left |
| 4 | Station | Double |
| 5 | Max. Linear Speed | 20m/min |
| 6 | Coil Inner Diameter | Φ356mm,Φ406mm |
| 7 | Coil Width | 152mm,203mm |
| 8 | Coil Outer Diameter | Φ560mm |
| 9 | Traverse | Polish rod |
| 10 | Coil Side Type | Wheel disk |
| 11 | Motor Power | 750W |
| 12 | Inverter Power | 1.5KW |
| 13 | Electronics | CHNT |
| 14 | Unload Type | Fast screw nut |
| 15 | Color | As require |
| 16 | More function | Meter auto counter, Tension control |
If you need other size or other models, just feel free to let us know. We'll tailor make for you according to your special work needs.
DETAIL IMAGES

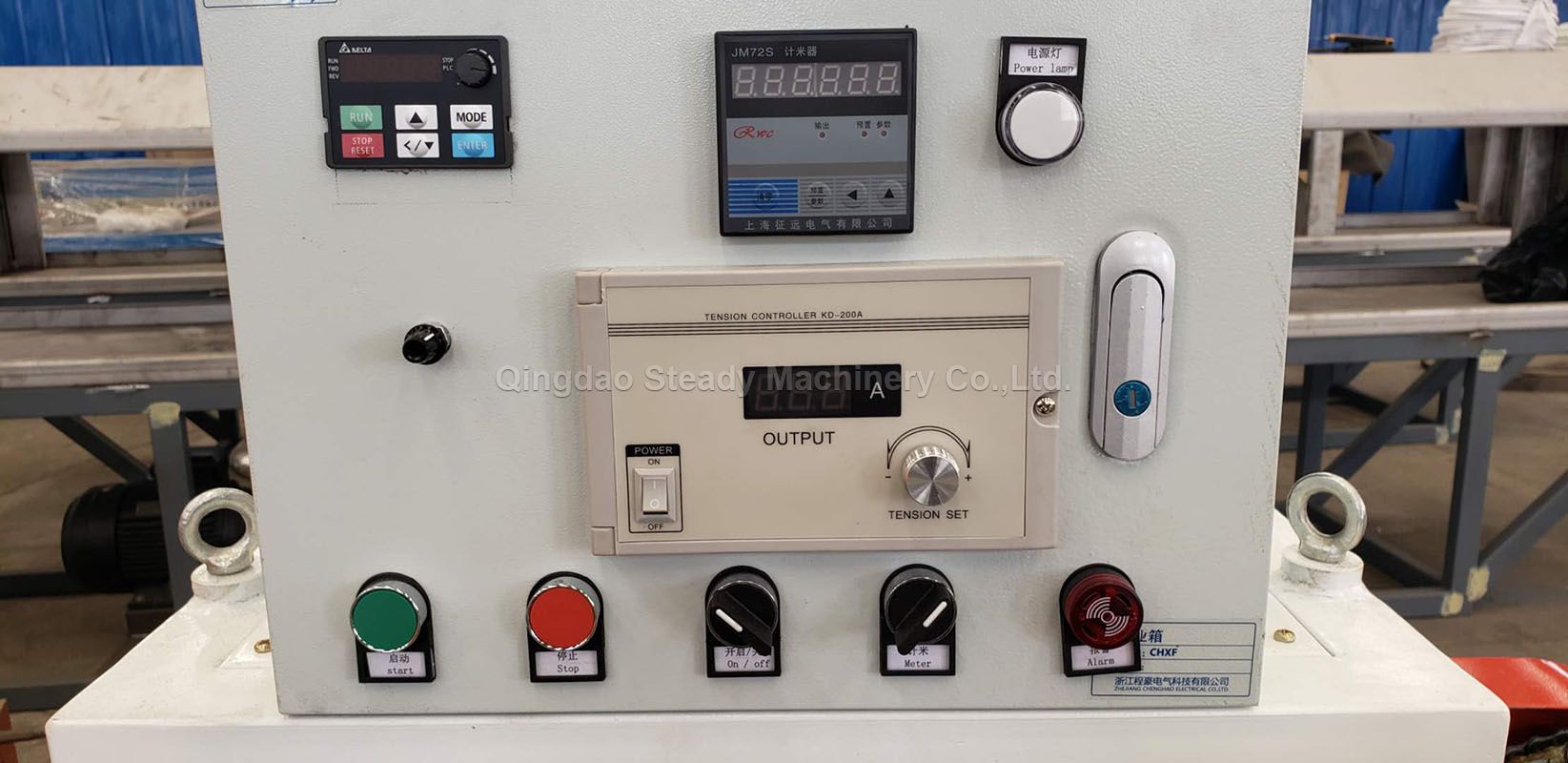

Control Box
Qingdao Steady Machinery's caterpillar tractor machine adopts famous brand electronics(for example, Delta inverter), works accurate and stable

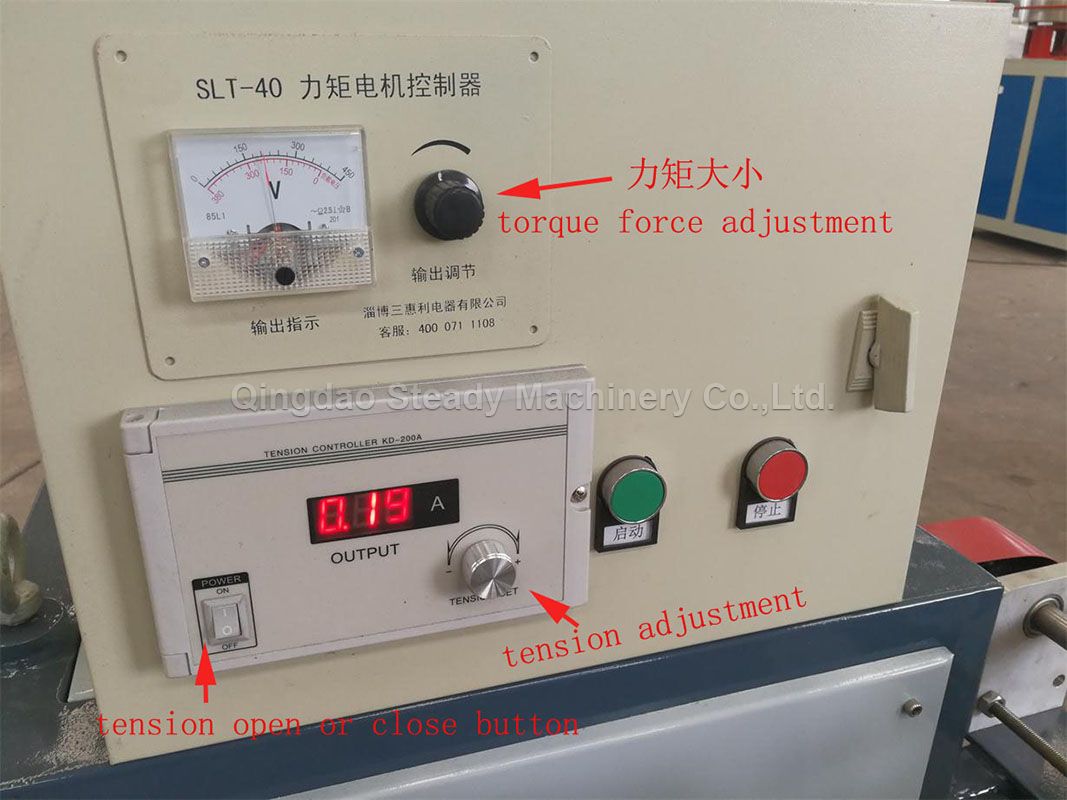

There's tension control device installed in the machine
Package size : L 166cm, W 96cm, Height 153cm
Gross Weight 500kg, Net Weiht 470kg
Detail size and weight will be vary according to which model machine purchased
Ø1. Will your machine meet our voltage， can we use your machine in our country?
Yes, we can customize every aspect of the machine according to customers’ work needs, Voltage,
Electricity frequency, clamping force, (heating )platen size, daylight, piston travel, working layer number, with sliding platen or not, assist cylinder, Control method, automatization level, PLC or not, etc,
Ø 2. Guarantee?
For the whole machine, not less than 2 years quality guarantee, and life long technical service whenever it’s needed.
Ø 3. Will the machine be kept well while on the sea journey?
Yes, for small size or single set machine, we use good quality fumigation free ply wood making strong packing for them.
For big size machine or multi sets small size machine, after proper treatment, we fixed them in the container so that the machine won’t get rust or damage in the sea voyage.
Ø 4. Whats’ the payment method?
There are TT, L/C, Credit Card, Western Union, Paypal, Alipay etc.
Ø5. What’s the shipping method?
Our rubber machines are most often shipped by sea, but for land-locked state, there are train or truck transportation. Or there are joint transportation between land and water.
When it come to small pare parts, it’s by international courier by air.
Look forward to hearing from you
